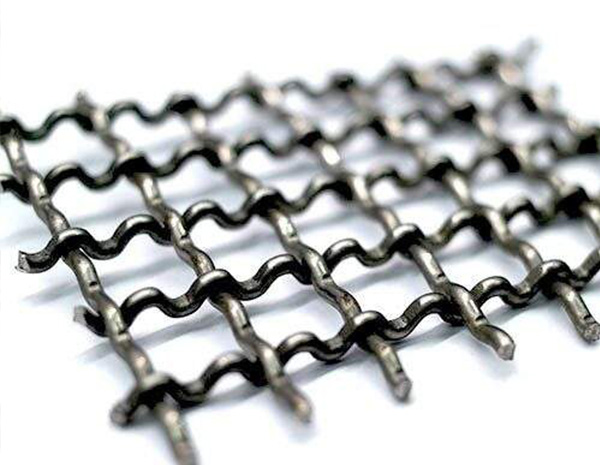

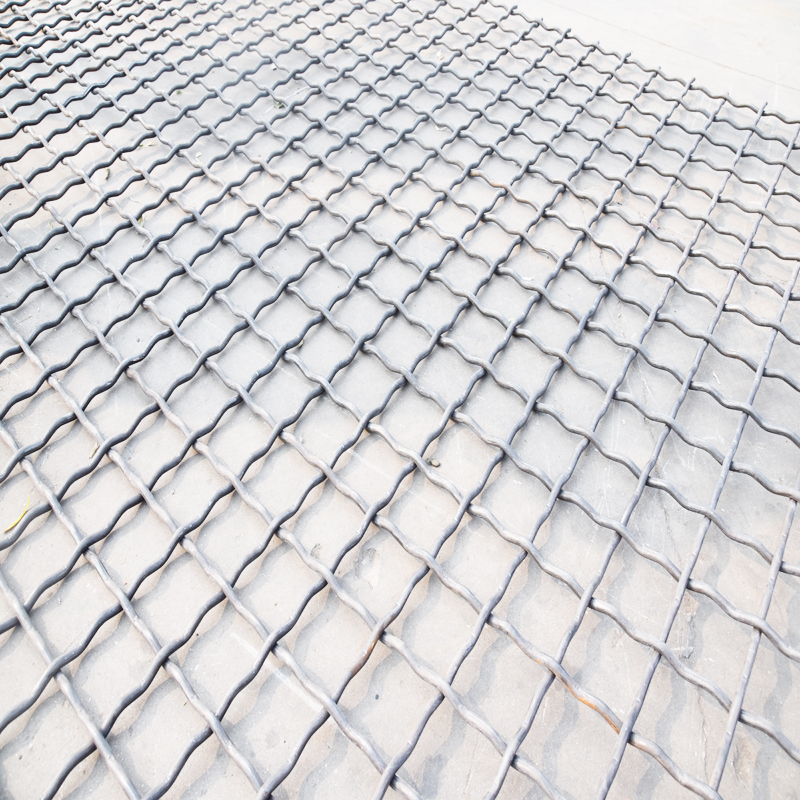

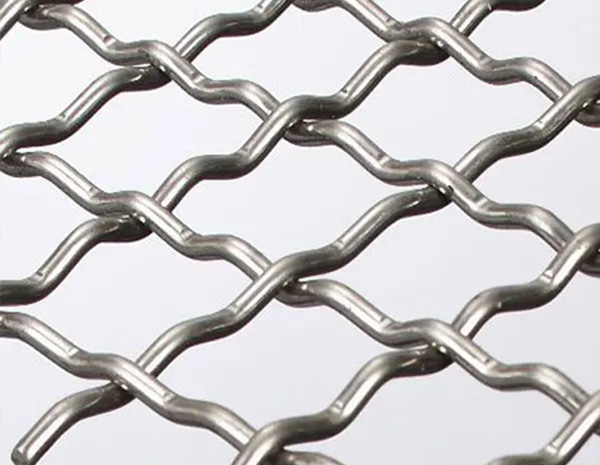

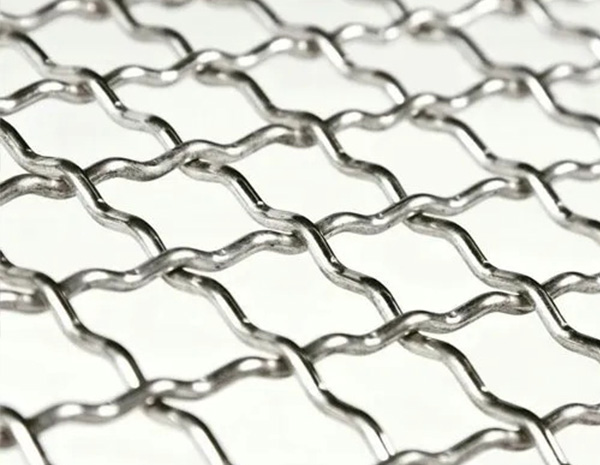

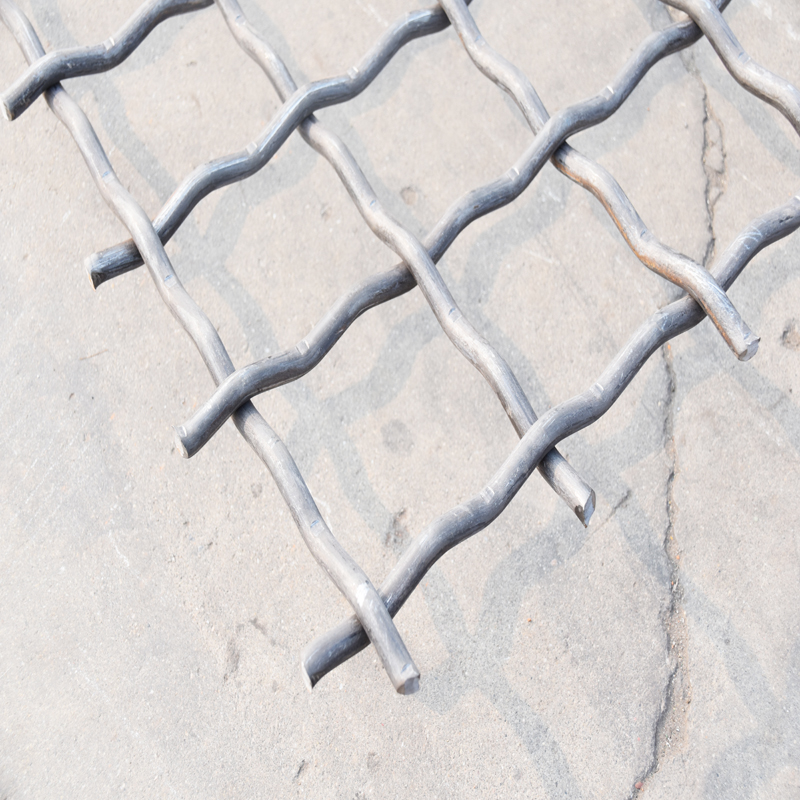

Double Crimped Screen Mesh

Double Crimp Screens are produced by weaving previously crimped wires into one another. The mesh width and wire diameter determine the number of crimps within a mesh width. In some cases it is possible to produce grids with identical mesh width and differing numbers of crimps. The number of crimps set by us guarantees the highest possible mesh stability.

Material:
highly abrasion-resistant spring steel or stainless spring steel.

Opening size:
2.0 - 80.0 mm

Wire diameter:
0.8 - 8 mm

Supplied dimensions:
as required by customer, in rolls or formats

Installation instructions:
the screen is installed with using of tensioning metallic bars into a separator over different types of hook strips, further with using of side bars and wedges, possibly is fastened into a frame.

Features:
Varied lengths
Require less maintenance
Sturdy construction

Application:
The Double Crimp Screen can be used in the following fields as:
* Safety grids (e.g. car industry, mechanical engineering, building industry)
* Filling elements for gates and fences in buildings and gardens
