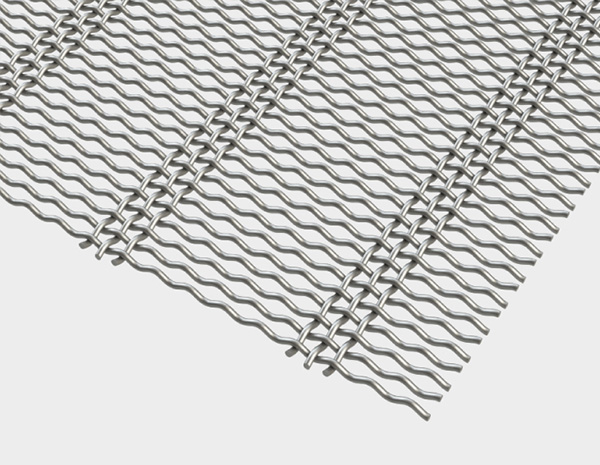

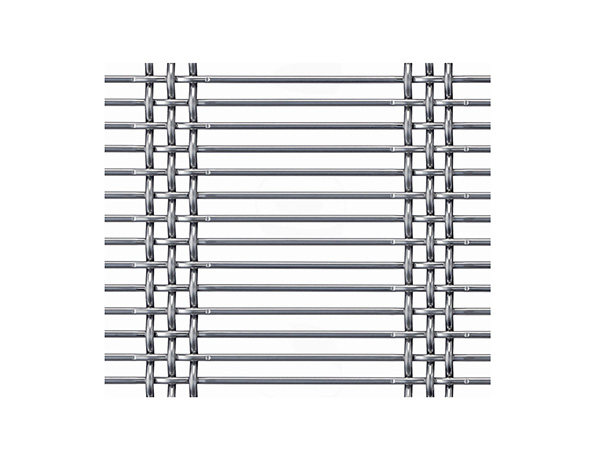

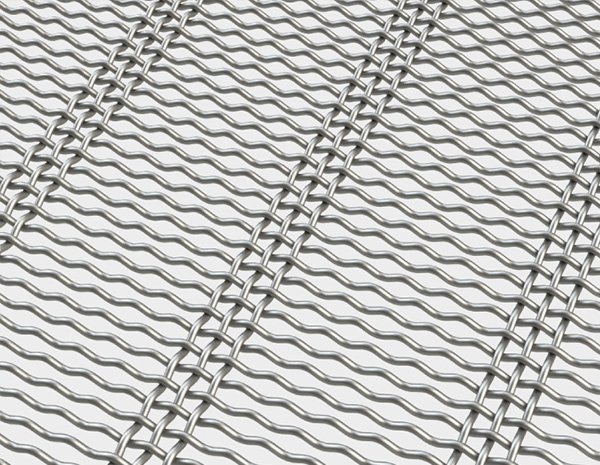

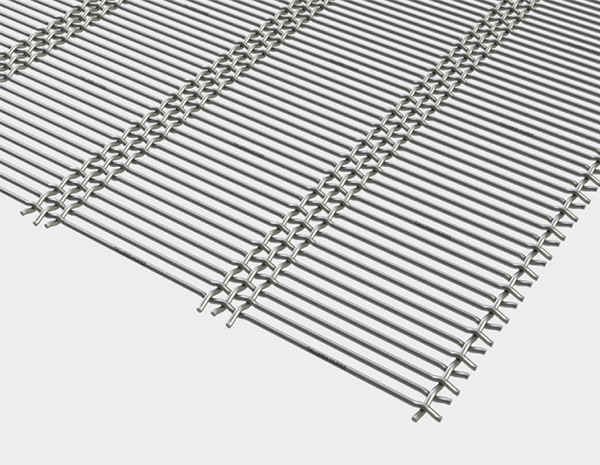

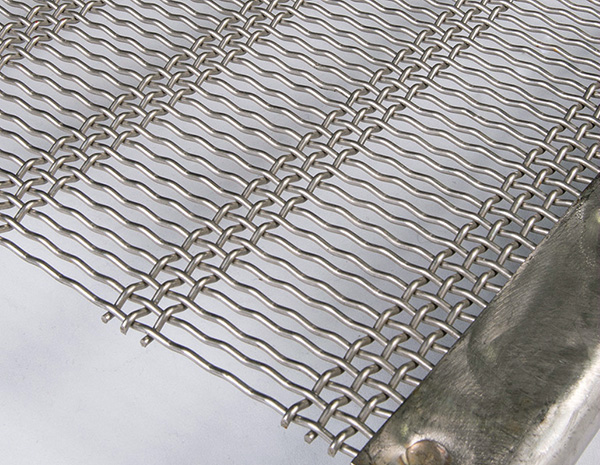

Rectangular Screen Mesh

Material:

black wire, spring steel wire, manganese steel wire and stainless steel wire.

Surface treatment:

 galvanized or painted.

Wire diameter:

 0.71mm - 12.5mm.

Mesh size:

1mm - 100mm.

Hole type:

square, rectangular and long slot.

Type of weaving:
Crimped before weave, double-direction,ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.

Features:
Rectangular Screen is substantially woven, firm structure, uniform cells, enduring, graceful, uniform surface, corrosion-resisting, etc.

Application：
Rectangular Screen is widely used in the vibrating screens, crushers and trommel screens.
Woven vibrating screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials. The Rectangular Screen has pre-undulated wires at different steps creating a grid of undulated tissue that gives rigidity to the mesh.
