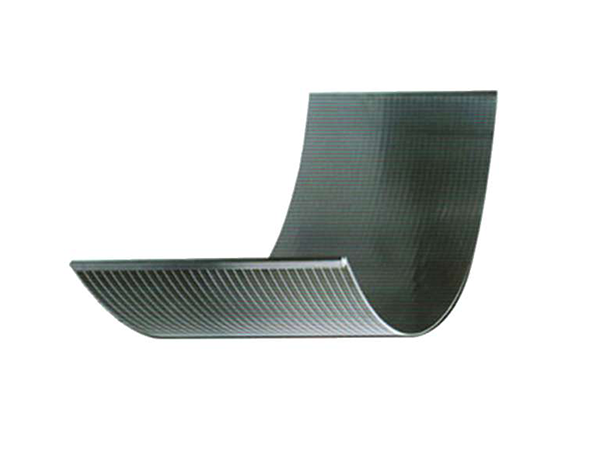

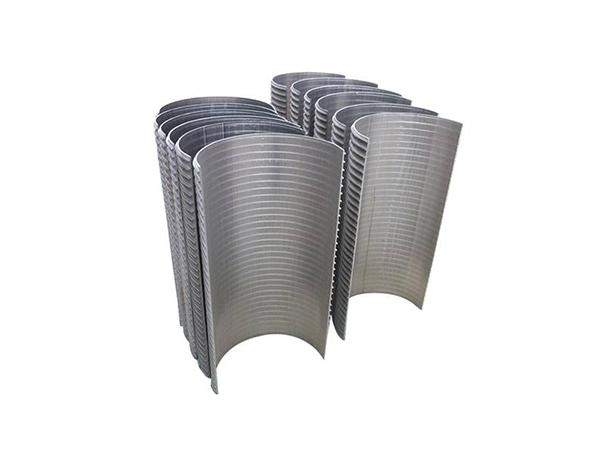

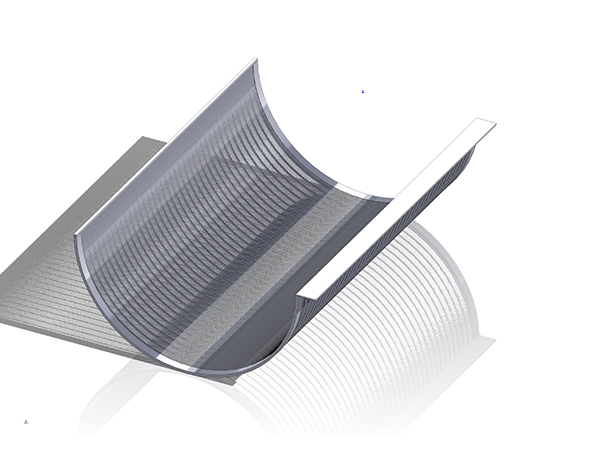

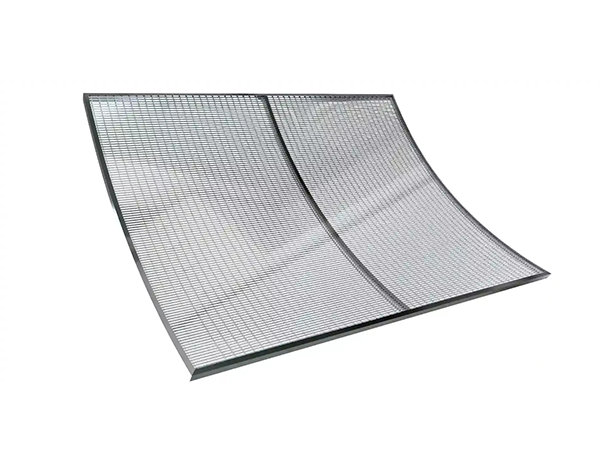

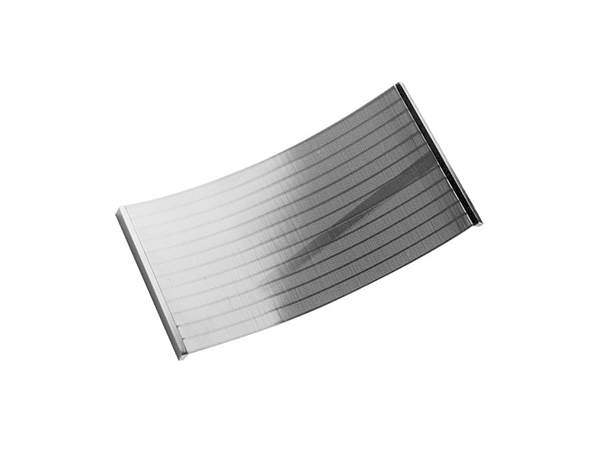

Sieve bend has a slotted screen structure with a trapezoidal wire section. The slot is wide at top and then narrows down. The mining sieve consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. This curved metal screen surface has greater solid-liquid-seperation capacity than a flat screen surface for fluid flow.
The v wire profile stainless steel mesh screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods with automatic wire screen machine. Each wedge wire and support rod are welded by resistance welding to form slot openings of precise aperture.
Hence, the vibrating sieve bends or DSM mesh has a structure with individually replaceable cross unit, flat bar runner system for woven wire decks, automatic alignment of tensioning bolts for side tensioned wire mesh deck panels and stress relieving technology in design.
Mesh Materials:
1. Stainless steel 304, 304L, 316, 316L, also monel, manganese steel, high carbon steel, low carbon steel, high manganese steel, or polyurethane and special material according to the customer request.
2. Opening /Slot: 0.02mm -- 6.0mm (Can be customized)
3. Pitch: 10mm -- 35mm
4. Max Length: 6m
5. Support Wire : V-Wire, Round wire etc.
