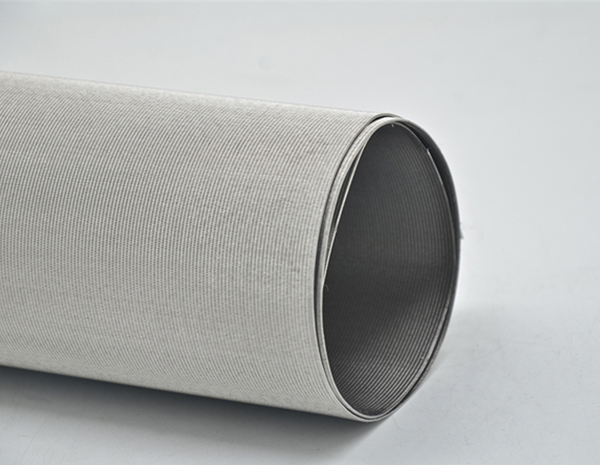

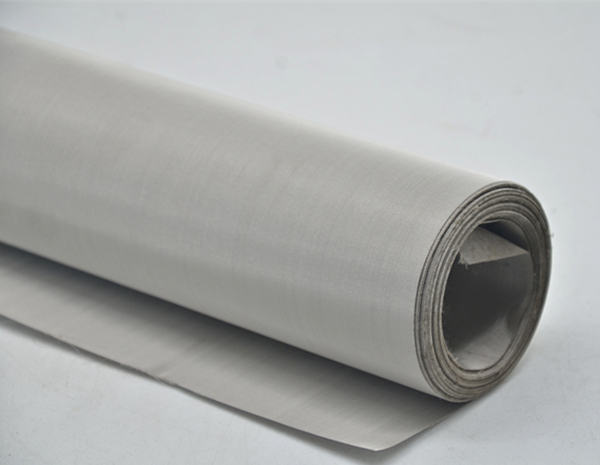

The mat-type mesh is a stainless steel wire mesh product woven with high-quality stainless steel wire. The warp and weft wire diameters of the mat-type mesh are different, and the mesh counts are different. Reasonable matching of wire warp and mesh count can achieve a filtration density that square mesh cannot achieve. Therefore, the mat-type mesh is a fine filtration dense mesh, but generally the warp wire diameter is larger than the weft wire diameter.
The mat-type mesh is made of SUS302 304 304L 316 316L stainless steel wire. It is widely used in oil refining, fertilizer, chemical industry, medicine, health research, etc. The mat-type mesh has two types: twill and plain.
Performance: acid and alkali resistance, high temperature resistance, strong tension and wear resistance, stable filtration performance, fine, high precision, and rich special filtration performance.
Weaving: plain woven stainless steel dense mesh (plain-dense), twill woven stainless steel dense mesh (twill-dense), bamboo flower woven stainless steel dense mesh, contrast woven stainless steel dense mesh (also called contrast mat-type mesh conveyor belt).

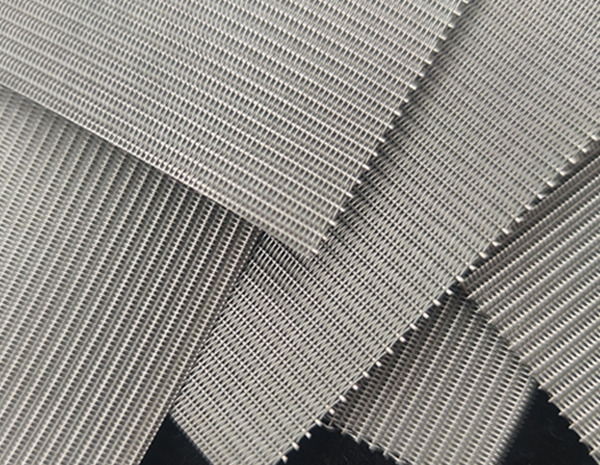

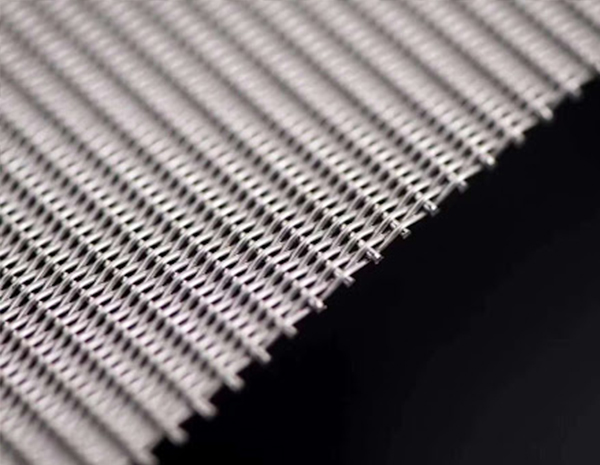

Technology: The Dutch plain weave is similar to the plain weave in that it is woven in rows. The difference is that the warp wire diameter of this woven mesh is thicker than the weft wire diameter. The weft wires are close together to form a conical or wedge-shaped opening.
Specifications: The mat-type woven mesh ranges from 12*64 mesh to 500*3500 mesh. Width: 1 meter-3 meters. It can also be customized according to customer requirements.
Packaging: Waterproof paper packaging, outer packaging is woven bags or wooden boxes, etc.
Application: Mainly used for gas, liquid filtration and other media separation; widely used in precision pressure filters, fuel filtration, vacuum filters, filter element raw materials, aerospace, oil refining, medicine, sugar making, petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, food, health research and other industries.
