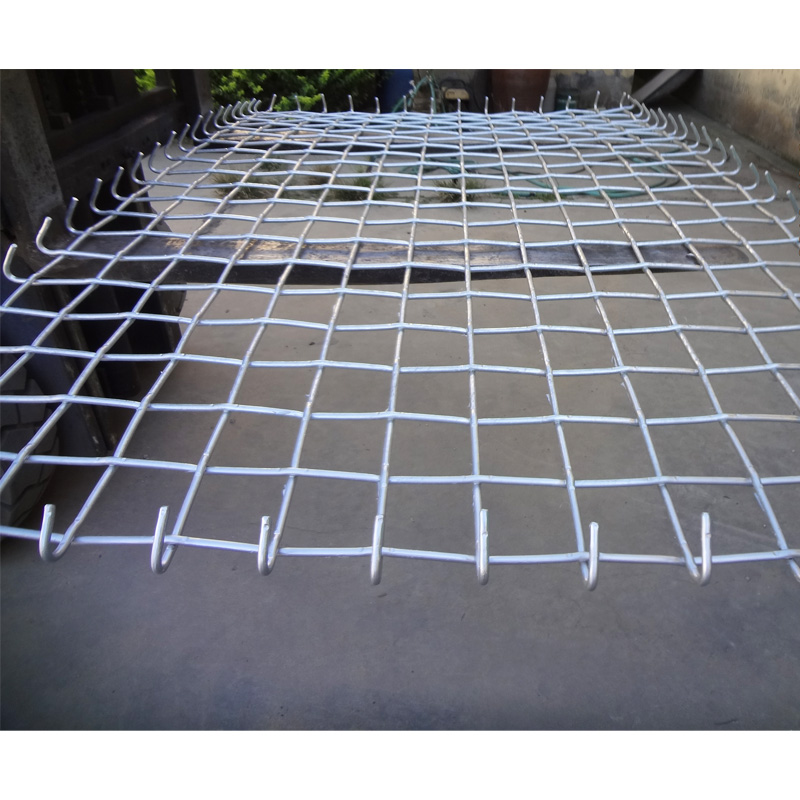

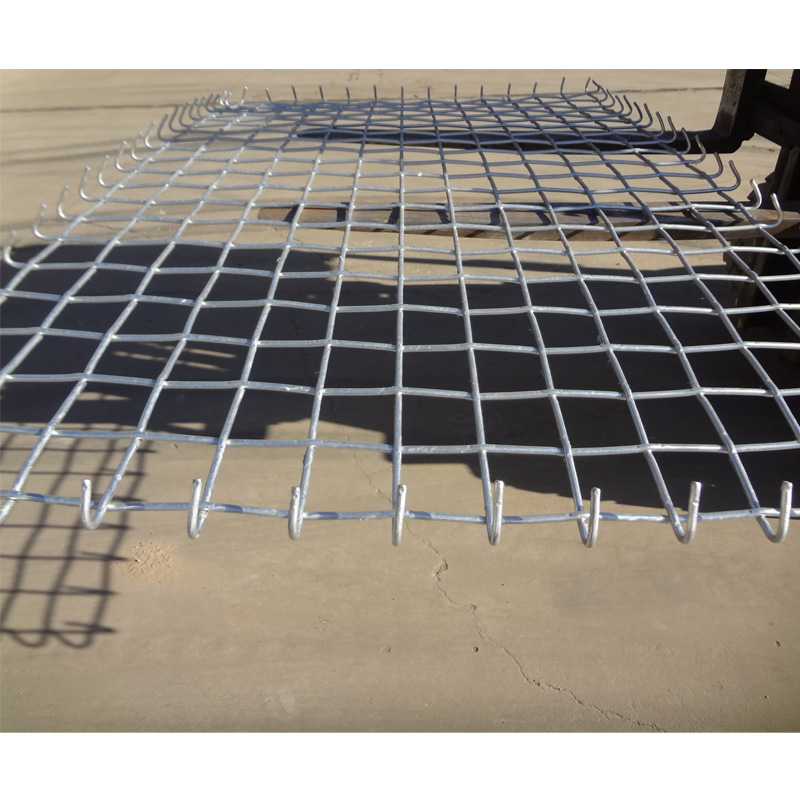

Under Ground Supporting Mesh

• Cost efficient, extremely high capacity mesh module

• Allows for displacement greater than 600mm on 1m x 1m bolt spacing

• Theoretical load carrying capacity of 60 tonne/metre² using 10mm wire

• Easily installed from standard bolting machines

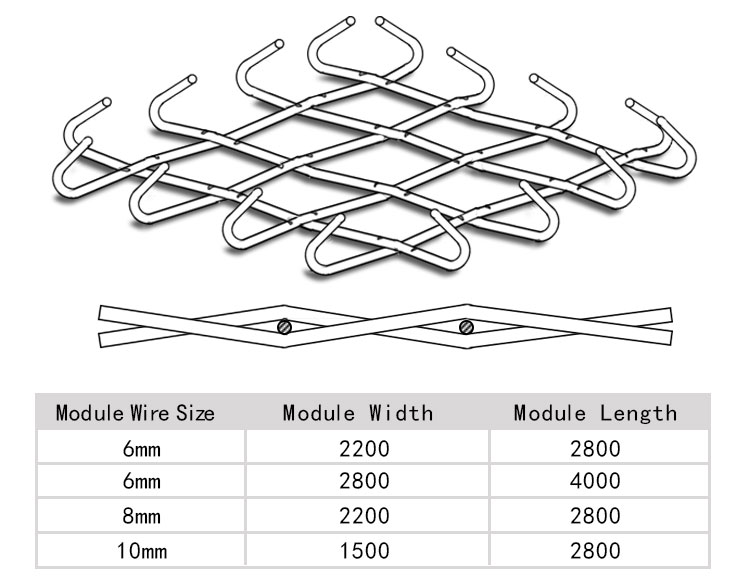

• Wire size 6, 8 and 10mm

• Mesh perimeter can be double welded  wire or ‘C’ bends

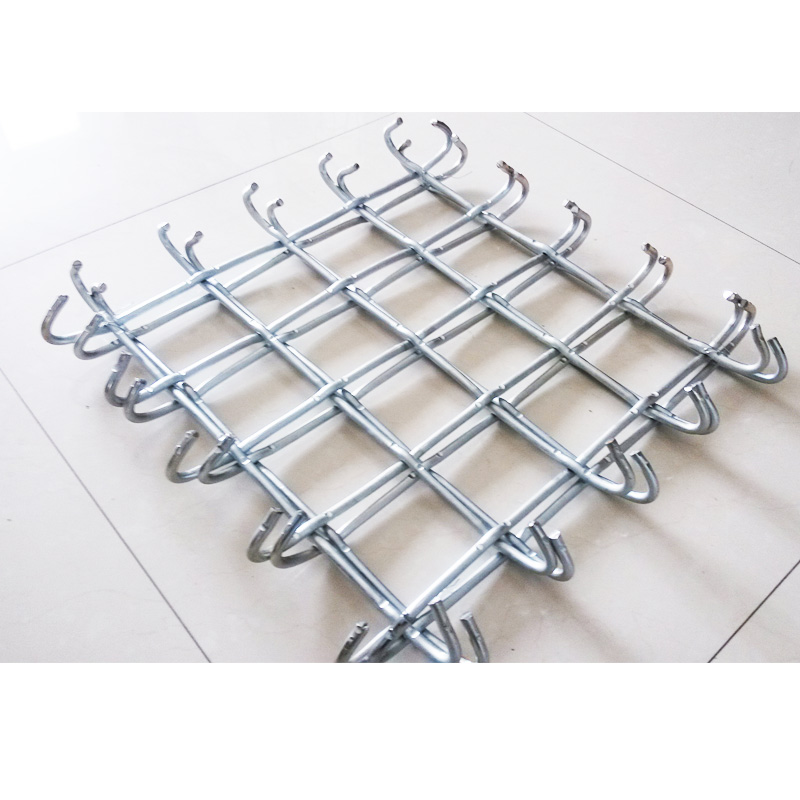

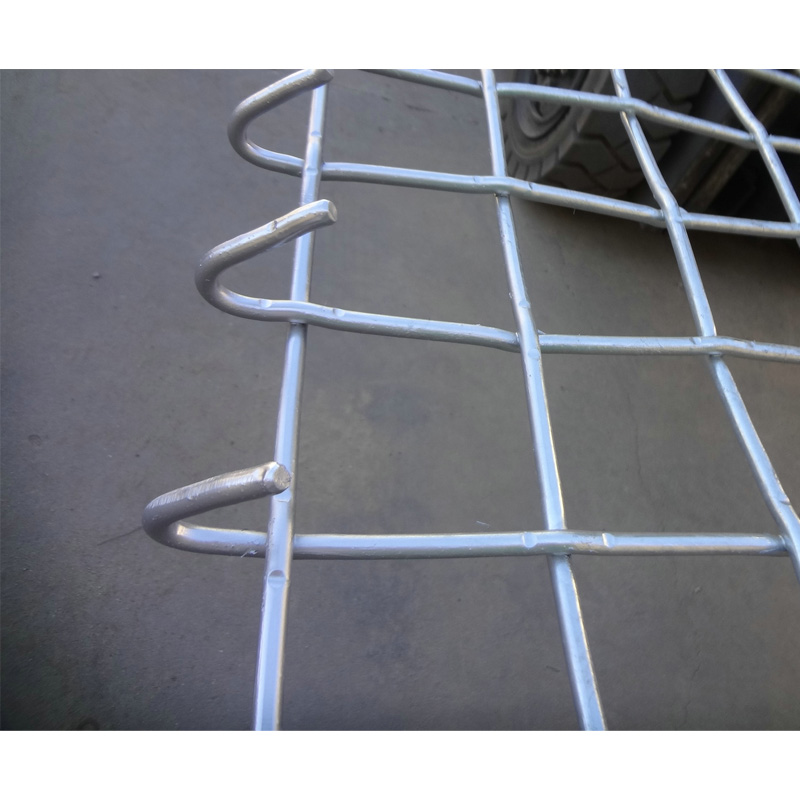

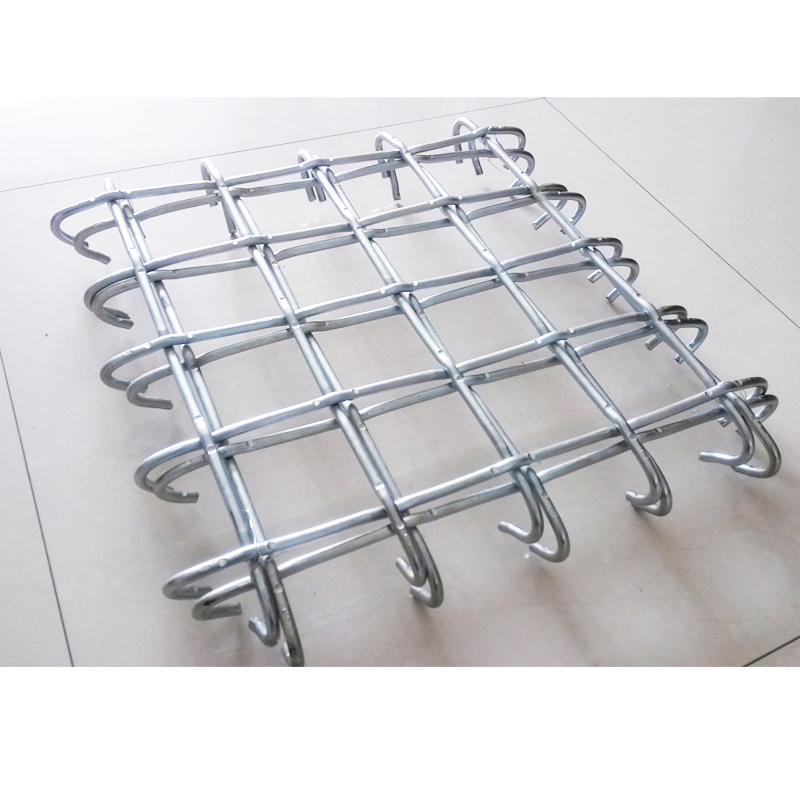

• Mesh perimeter ‘C’ bends allow the mesh module to interlock together during installationand when loading due to displacement

• Wire ultimate strength >1000MPa

• Wire yield strength >800MPa
