Wedge Wire Screen

Description:

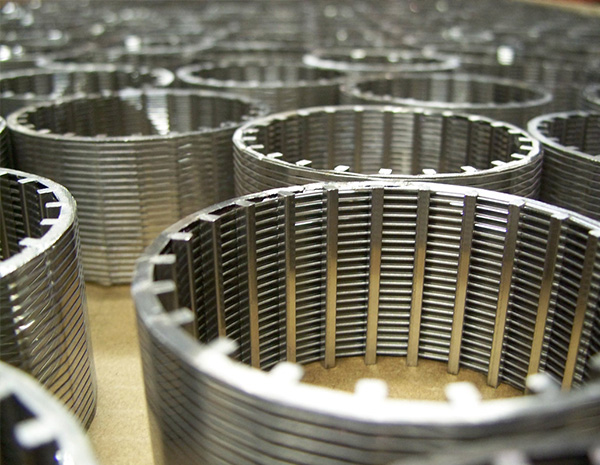

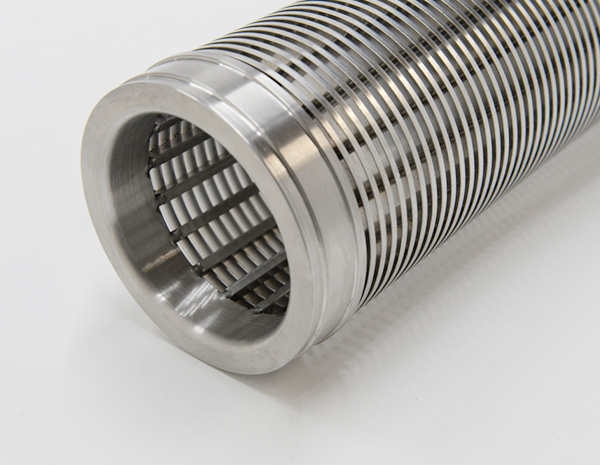

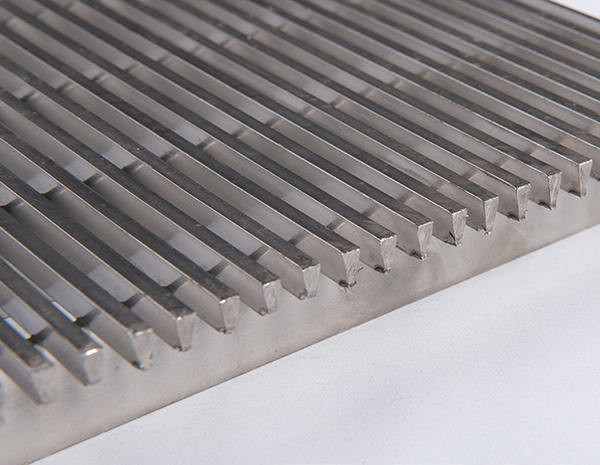

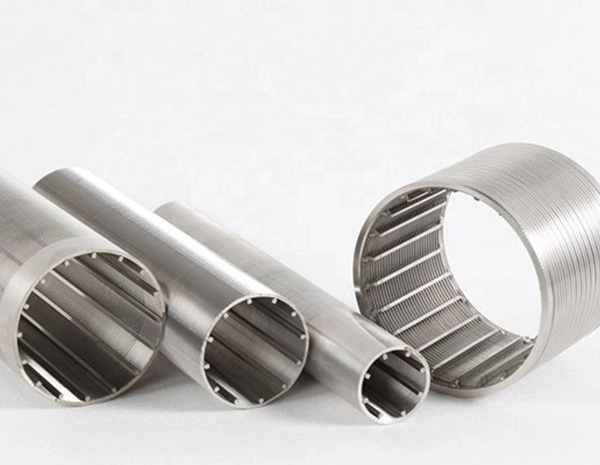

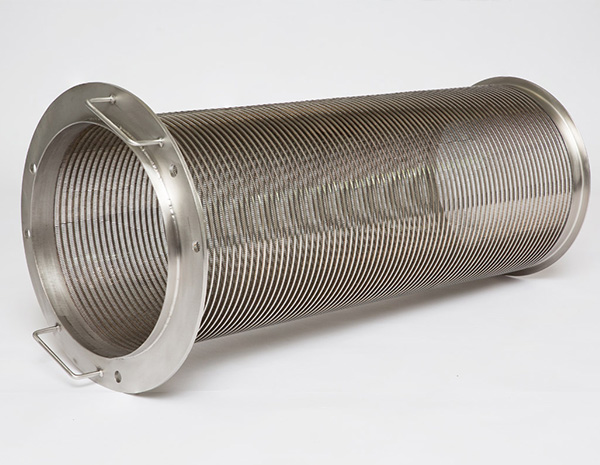

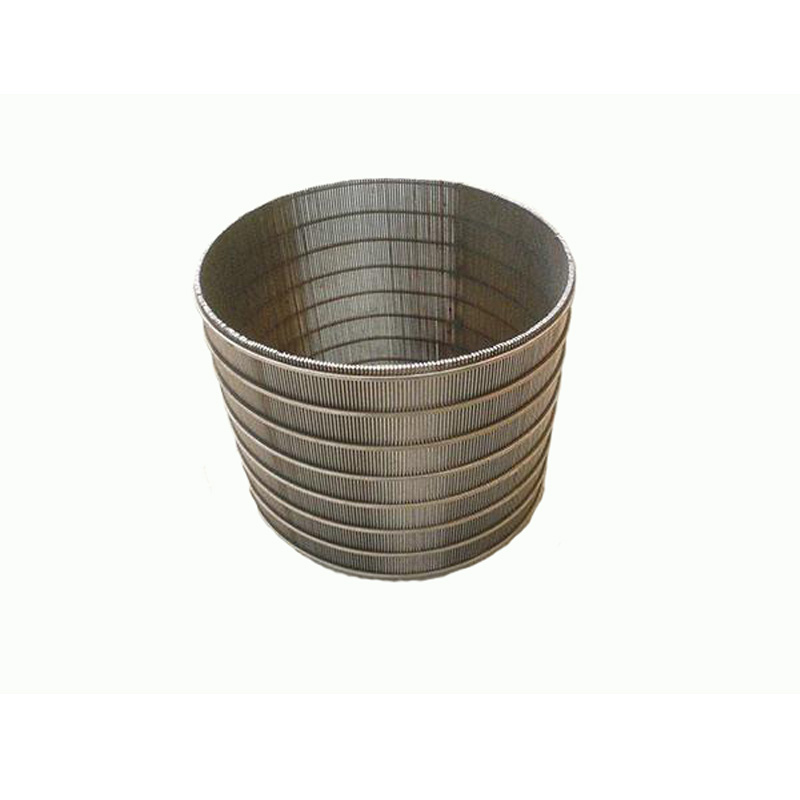

Wedge wire tubes are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Material:

According to the wedge wire screen catalogue – ferrite: AISI 430 (1.4016); austenite: AISI 304 (1.4301), AISI 304L (1.4307), AISI 202 (1.473), AISI 316 (1.4401), AISI 316L (1.4404), AISI 317LN (1.4439), AISI 904L (1.4539), AISI 321 (1.4541), AISI 316Ti (1.4571), Duplex: 329 LN (1.4462), 439 (1.4410); Special: 2.4360, 2.4610, 2.4816

Slot:

Standard from 0,02 mm. Smaller on available on customer’s request.

Support wire:

According to the wedge wire screen catalogue – type I*: 10x2, 10x3, 12x3, 18x2; type Q*: Q35, Q55

Wire:

According to the wedge wire screen catalogue – standard wire Sb* type: 12Sb, 18Sb, 22Sb, 28Sb, 34Sb, 42Sb, 60 Sb, 70 Sb; SbA50; special wires*: Sbb34, Sbb38, Sbb42, Sbb48, Sbb50; 2,4x5; 3x6,5

Dimensions:

Ø 100-630 mm, max.: 6000 mm
